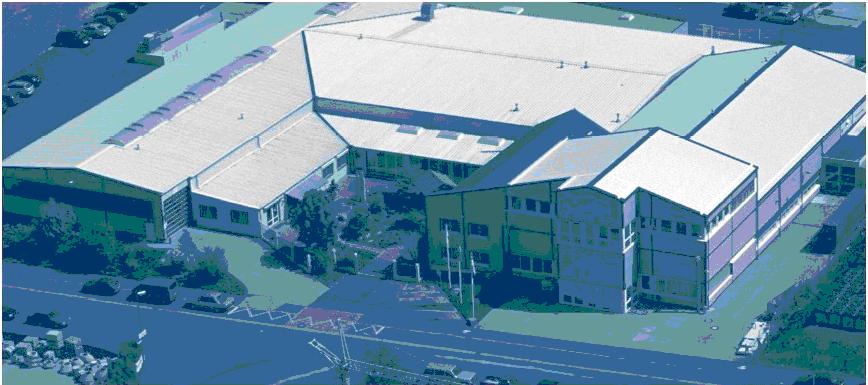

Cassel deliver simply advanced inspection systems including metal detectors to ensure the quality of your products, our reputation has been earned by protecting yours. Each year we manufacture and deliver over 1000 systems with 80% heading for the export market. Our state of the art manufacturing facility and worldwide headquarters is located in Dransfeld, near Hannover, in Germany. We have a worldwide network of partner agents to ensure you get the very best of service and support wherever you are. We have installations spanning all 5 continents and supporting industries as diverse as Food, Plastics, Pharmaceuticals, Textile, Timber and Mining.

The WEIGH SHARK® checkweighers are automated machines for checking the weight of packaged products. The weighing is a dynamic, in-motion process. It is used to ensure that the weight of a pack is within specified limits. An optional reject system removes any packs that are outside the tolerance range.

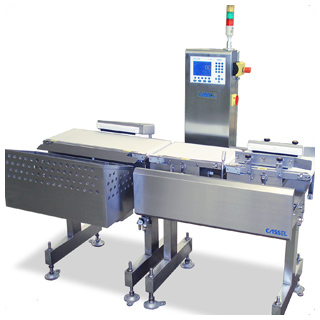

Checkweigher 600g - 6 kg

The WEIGH SHARK® checkweighers are automated machines for checking the weight of packaged products. The weighing is a dynamic, in-motion process. It is used to ensure that the weight of a pack is within specified limits. An optional reject system takes any packs that are outside the tolerance out of line automatically.

Full BRC specification available. (BRC = British Retailer Consortium)

Model
Weight range
Dynamic accuracy
Standards
Design
Reject
User Interface
Power supply
Protection degree
Interfaces

WS-5500 Checkweigher
600 - 6000 gr
+/- 0.8 - 3 gr
CE Conform Europe, „e“-law average software with tu1/tu2 limits
Powder coated mild steel or stainless steel
Air blow, Flip bar, Pusher
5.7" screen display, keypad
230V / 1ph / 50-60Hz / 500 Watt
IP54
RS232C, RS422 & RS485 (optional, for printer), Ethernet (optional, for SHARKNET-2 batch control software)

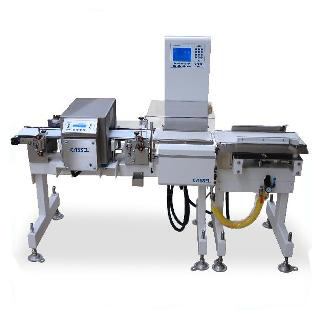

Checkweigher 0.6 - 6 kg Combo

The WEIGH SHARK® checkweighers are automated machines for checking the weight of packaged products. The weighing is a dynamic, in-motion process. It is used to ensure that the weight of a pack is within specified limits. An optional reject system takes any packs that are outside the tolerance out of line automatically.

The Combo model is additonally equipped with a METAL SHARK® BD series metal detector.

Full BRC specification available (BRC = British Retailer Consortium).

Model
Weight range
Dynamic accuracy
Standards
Design
Reject
User Interface
Power supply
Protection degree
Interfaces

WS-5500 Checkweigher Combo + METAL SHARK® BD metal detector
600 - 6000 gr
+/- 0.8 - 3 gr
CE Conform Europe, „e“-law average software with tu1/tu2 limits
Powder coated mild steel or stainless steel
Air blow, Flip bar, Pusher
5.7" screen display, keypad
230V / 1ph / 50-60Hz / 500 Watt
IP54
RS232C, RS422 & RS485 (optional, for printer), Ethernet (optional, for SHARKNET-2 batch control software)

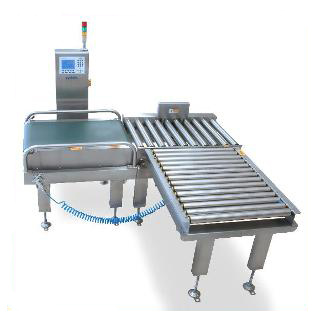

Checkweigher 6 - 60 kg

The WEIGH SHARK® checkweighers are automated machines for checking the weight of packaged products. The weighing is a dynamic, in-motion process. It is used to ensure that the weight of a pack is within specified limits. An optional reject system takes any packs that are outside the tolerance out of line automatically.

Full BRC specification available. (BRC = British Retailer Consortium)

Model
Weight range
Dynamic accuracy
Standards
Design
Reject
User Interface
Power supply

WS-5500 Checkweigher
6 - 60 kg
+/- 3 - 40 gr
CE Conform Europe, „e“-law average software with tu1/tu2 limits
Powder coated mild steel or stainless steel
Pusher on roller, Pusher on belt
5.7" screen display, keypad
230V / 1ph / 50-60Hz / 500 Watt

SHARKNET®-2 Software

Windows software for HACCP and Batch reports and remote maintenance.

SHARKNET provides automatic documentation of operational data for metal detectors, checkweighers and x-ray devices.

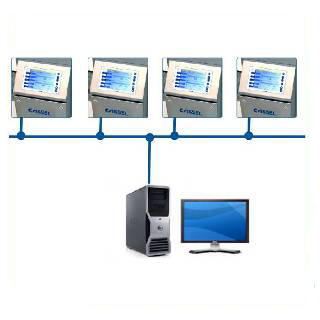

The SHARKNET®-2 Software networks all METAL SHARK® metal detectors, checkweighers and x-ray machines with one Windows computer. SHARKNET®-2 simplifies reporting for HACCP, GMP, BRC and IFS compliance. The software collects all the required data and prints out any user defined report requests.
