Cassel deliver simply advanced inspection systems including metal detectors to ensure the quality of your products, our reputation has been earned by protecting yours. Each year we manufacture and deliver over 1000 systems with 80% heading for the export market. Our state of the art manufacturing facility and worldwide headquarters is located in Dransfeld, near Hannover, in Germany. We have a worldwide network of partner agents to ensure you get the very best of service and support wherever you are. We have installations spanning all 5 continents and supporting industries as diverse as Food, Plastics, Pharmaceuticals, Textile, Timber and Mining

The XRAY SHARK® is an x-ray device with an integrated conveyor belt. It fully automatically inspects packaged, not packaged or bulk products. It detects contaminants, as well as other individual attributes like completeness, form, mass of the product. It classifies and sorts out faulty products automatically.

• User-friendly operationEasy cleaning and maintenance
• Real time detection with colored contamination analysis
• Masking functions24 hour non-stop operation
• Reliable German safety standards – TÜV-approved
• Ethernet and USB
• Auto storing of inspection data, with time/date stamp
• Built-in remote maintenance

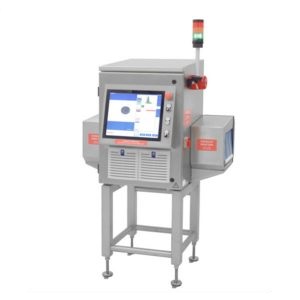

XRAY SHARK® XBD10

The XRAY XBD10 is particularly suitable for smaller, packaged food or non-food products contained in jars, boxes, plastic packaging and even metal foils or metal cans. Undesirable contaminants such as metal, stone, ceramic, glass or plastic particles with high density can be detected in the product. The XBD 10 is the most compact x-ray device and therefore highly recommended as an entry-level detection system.

For packaged products with max. dimensions Width x Height:
250×25 / 230×50 / 200×75 / 180×100 / 155×125 mm

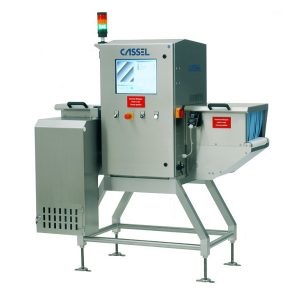

XRAY SHARK® XBD20

The XRAY XBD20/XBD20+ is particularly suitable for smaller, packaged food or non-food products contained in jars, boxes, plastic packaging and even metal foils or metal cans. Undesirable contaminants such as metal, stone, ceramic, glass or plastic particles with high density can be detected in the product.

For packaged products with max. dimensions Width x Height:
250×50 / 230×100 / 200×140 / 170×200 mm (XBD20)
340×60 / 300×100 / 250×160 / 200×200 (XBD20+)

XRAY SHARK® XBD40

The XRAY XBD40, XBD40+ and XBD45+ offer different dimensions and as such are suitable for packed food or non-food products in different sizes, for example boxes, plastic packaging and even metal foils or metal cans. Undesirable contaminants such as metal, stone, ceramic, glass or plastic pieces with high density can be detected as foreign bodies. The XRAY XBD40, XBD40+ and XBD45+ can be adapted perfectly to your product inspection.

For packaged products with max. dimensions Width x Height:
340×60 / 300×100 / 250×160 / 200×200 mm (XBD40)
440×180 / 380×250 / 350×300 / 260×400 / 220×450  mm (XBD40+)
650×180 / 560×250 / 500×300 / 450×350 / 320×450 mm (XBD45+)

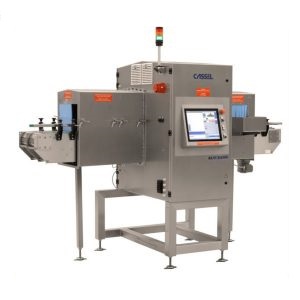

XRAY SHARK® XBD40 sideup

The XRAY XBD40  sideup  is  particularly  suitable  for  food  or  non-food products in glass or plastic containers like jars or bottles. Undesirable contaminants such as metal, stone, ceramic, glass or plastic with high density can be detected in the product.

For glass, bottle, jar, can products
with max. dimensions Ø 150 x H 250 mm
other dimensions on request
Max. flow rate 100 pieces per minute

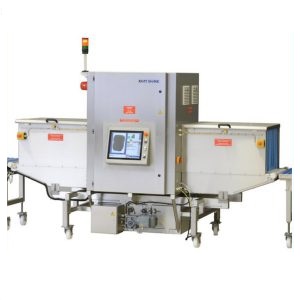

The models XBD80 and XBD80+ offer different dimensions and as such are suitable for packed food or non-food products in different sizes, for example boxes, plastic packaging and even metal foils or metal cans. Undesirable contaminants such as metal, stone, ceramic, glass or plastic pieces with high density can be detected as foreign bodies. The XBD80 and XBD80+ can be adapted perfectly to your product inspection.

For packaged products with max. dimensions Width x Height:
440×380 mm (XBD80)
680×380 mm (XBD80+)

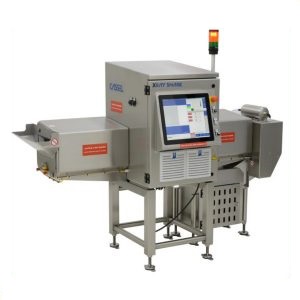

The products flow continuously down the conveyor. The system scans nonstop and captures the X-ray images. These images are then analyzed and if contamination is detected the reject signal is transferred to the output. It is possible to have a series of rejects for a bulk flow system – for example you can have a drop-flap reject mechanism with 4 or 8 reject flaps.

For unpackaged products in bulk
Belt net width 246 mm (XBD10)
Belt net width 346 mm (XBD20+)

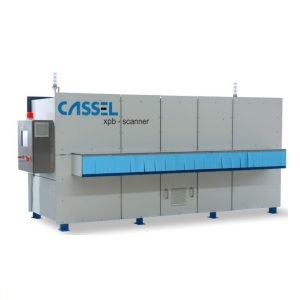

XRAY SHARK® XPB

The XRAY XPB specializes in detecting metal contamination in transformer boards and paperboards. XRAY SHARK® XPB benefits from its ability to handle wide products, with a maximum product width of 3400mm.

Accommodates products with a maximum product width of 3400mm for heights less than 30mm, or a product width of 3200mm for heights between 30mm to 100mm.

5 X-ray generators to ensure accurate inspection for the full width of the product.

For wide boards, felts, webs with max. dimensions Width x Height 3400 x 100 mm

Windows software for HACCP and Batch reports and remote maintenance.

SHARKNET provides automatic documentation of operational data for metal detectors, checkweighers and x-ray devices.

The SHARKNET®-2 Software networks all METAL SHARK® metal detectors, checkweighers and x-ray machines with one Windows computer. SHARKNET®-2 simplifies reporting for HACCP, GMP, BRC and IFS compliance. The software collects all the required data and prints out any user defined report requests.
