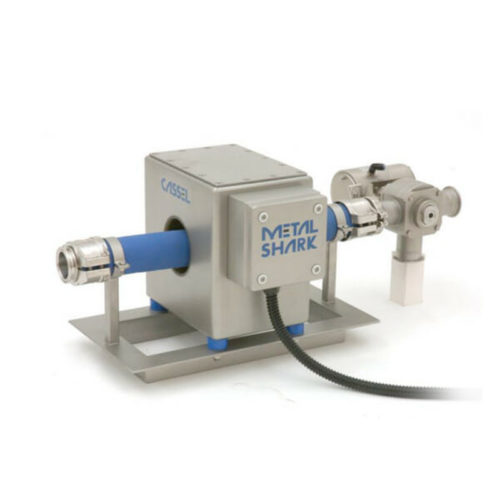

Cassel′s IN LIQUID Metal Detector, designed for liquids and slurries, boasts a rugged stainless steel sensor and housing, and is appropriate for use in the food industry.

Industrial application: Pump Feed, Food

For Pipelines with Liquids and Slurries.

Cassel′s Metal Detector IN LIQUID, designed for liquids and slurries, boasts a rugged stainless steel sensor and housing, and is appropriate for use in the food industry.

With a maintenance-free design and high quality construction, users can depend on reliable operation even in the most challenging industrial environments.

Available digital controllers: METAL SHARK® 1,  METAL SHARK® 2A

Features & Benefits of Metal Detector IN LIQUID

Rugged throughput hose: A variety of stainless steel connections are available, including tri-clamp, milk-thread and aseptic flanges. The standard hose, able to withstand pressure up to 16 bar and designed for a harsh manufacturing plant environment, is constructed for high temperature use and CIP/SIP systems. Pipe diameters range from 1″ to 4″.

Available reject systems: The reliable and easy-to-maintain butterfly valve reject system is ideal for CIP/SIP applications. The Ex-PWC reject valve is designed for flowing products with non-fluid components and will not impede product flow. The reject piston can be easily removed for daily water hose cleaning. Other reject systems are available.

Assembly frame options: Cassel′s hygienic frame design is easy to clean. All tubing is close welded on all sides. Design options are floor stands (with/without castors) or custom OEM frames fitted to accommodate existing equipment. The control unit can be attached to the frame or wall mounted.

Performance check: An optional testball insertion port allows an operator to regularly and easily test metal detector performance. Also, Autotest option is available for automatic validation with test spheres in separate test pipes.
