Wide metal detectors are specifically designed for the inspection of wood panel boards, transformer boards and other boards. Typically, the metal detector is mounted in the forming line before a continuous press and provides the highest performance in detecting magnetic and non-magnetic metals.

More than 500 Cassel metal detectors are installed world-wide in MDF, particleboard, OSB and other wood board production plants.

METAL SHARK® FL

Flat-sensor for mounting above and below the product.

• Product-effect teaching: yes
• Fe Ø 0.8mm in 10mm above sensor
• Sensing width: 200 -8,000 mm

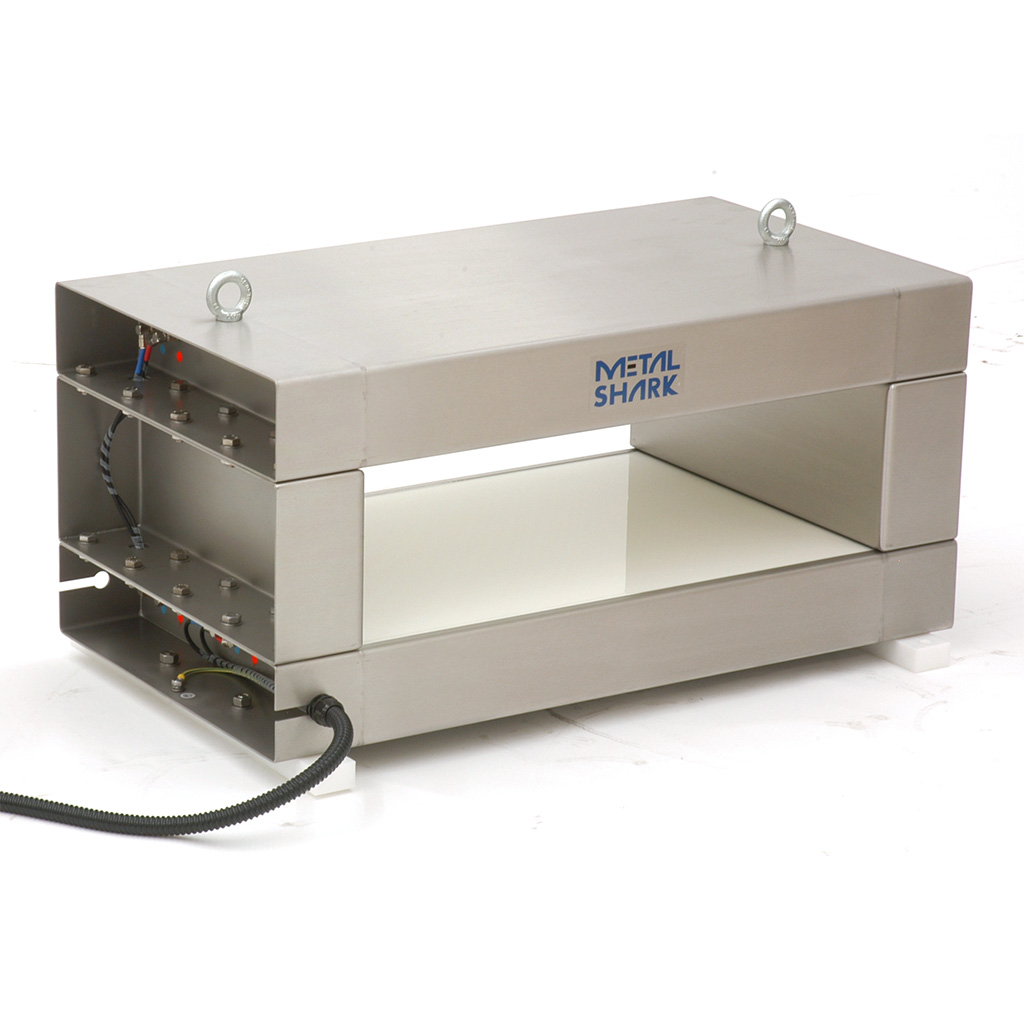

METAL SHARK® TU

Divideable Tunnel-detector, for installation in conveyor-belts. Automatic adjustment of sensor, stainless-steel housing.

• Product-effect teaching: yes
• Sensing heights: 200 – 800 mm
• Best sensitivity: Fe Ø 1.2 mm
• Sensing widths: 200-2,000 mm

METAL SHARK® COMBI

Ultra-high sensitivities for products being extra wide and flat. The product is positioned close to the sensor-surface.

• Product-effect teaching: yes
• Best sensitivity: Fe Ø 0.3 mm
• Sensing width: up to 5,000 mm

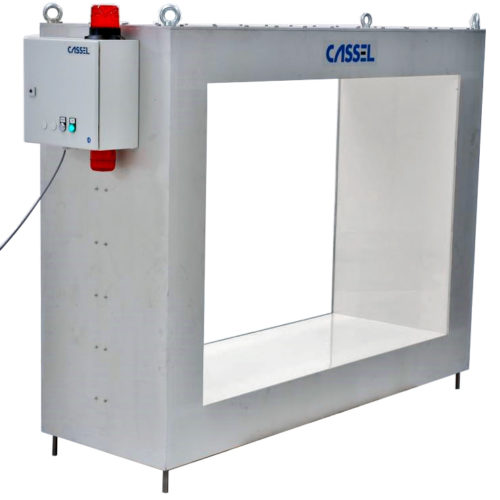

METAL SHARK® BIG

Very large and sturdy metal detector.

• Product-effect teaching: yes
• Best sensitivity: steel-nut M6
• Aperture width up to 800 – 4,500 mm
• Aperture height up to 1,400 mm

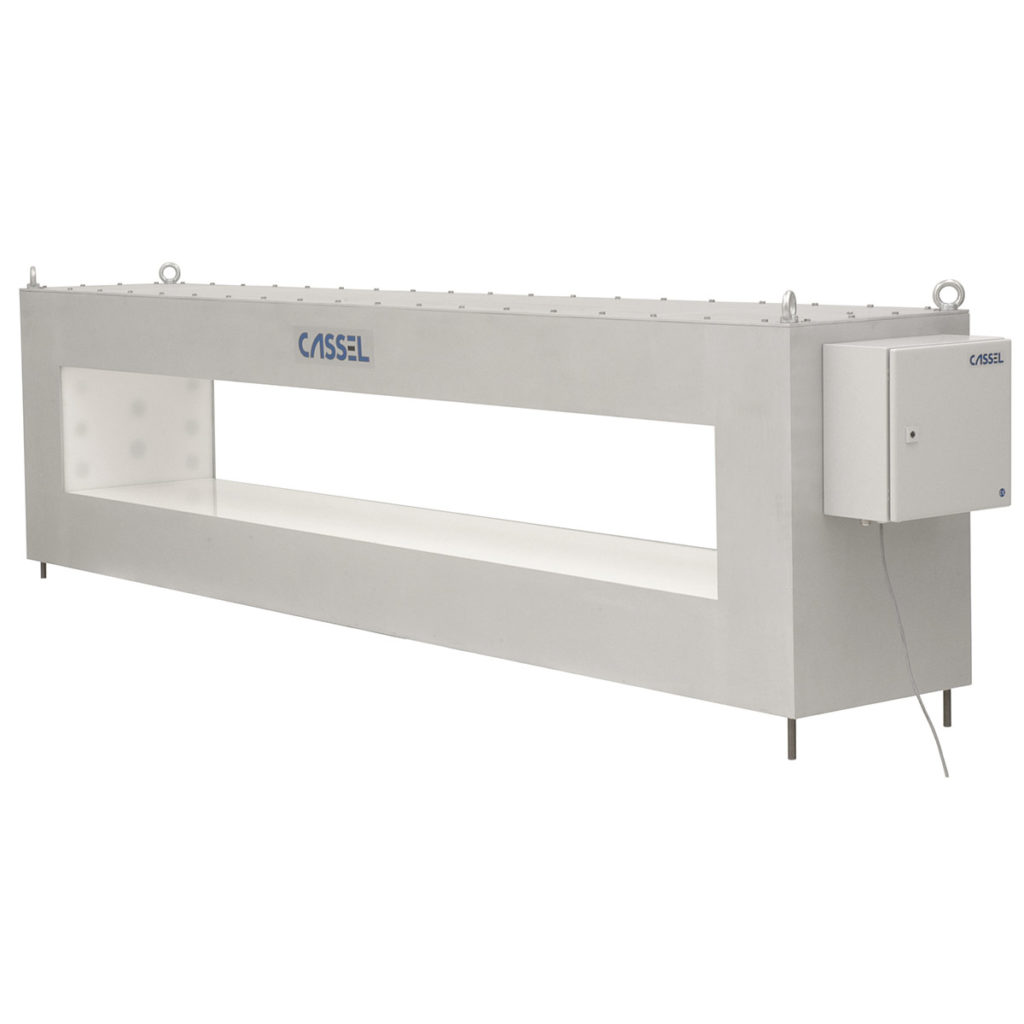

METAL SHARK® BIG pba

Highest sensitivities for extra-wide products (e.g. MDF- and particle-boards).

• Product-effect teaching: yes
• Best sensitivity: Fe Ø 1.0 mm
• Aperture width up to 5,000 mm
• Aperture height up to 500 mm

SHARKNET®-2 Software

Windows software for HACCP and Batch reports and remote maintenance.

SHARKNET provides automatic documentation of operational data for metal detectors, checkweighers and x-ray devices.

The SHARKNET®-2 Software networks all METAL SHARK® metal detectors, checkweighers and x-ray machines with one Windows computer. SHARKNET®-2 simplifies reporting for HACCP, GMP, BRC and IFS compliance. The software collects all the required data and prints out any user defined report requests.
