Food

Per HACCP principles, Metal Detectors are classified as critical control points and continuous checking is required to meet standards. Cassel can integrate a performance validation system (PVS) which automatically prompts the operator to test Metal Detector performance at pre-set intervals.

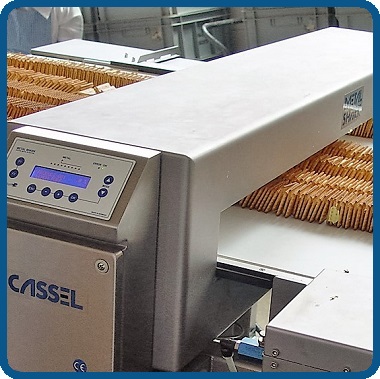

The conveyor belt, framing and controls are made with sanitary designs for food grade process applications. Product touching parts are made according to FDA food grade quality standards.  Cassel Metal Detectors can be easily adjusted for the best product inspection tasks even under harsh environmental conditions or for conductive products.

Due to the hygienic design, Metal Detector can be easily disassembled for daily rinsing with water or steam hose cleaning.


METAL SHARK® BD

Conveyor-applications, non-divideable, stainless-steel construction.

  • product-effect teaching: yes
  • best sensitivity: Fe Ø 0.5 mm
  • Aperture width: 50 - 1000 mm
  • Aperture height: 50 - 500 mm

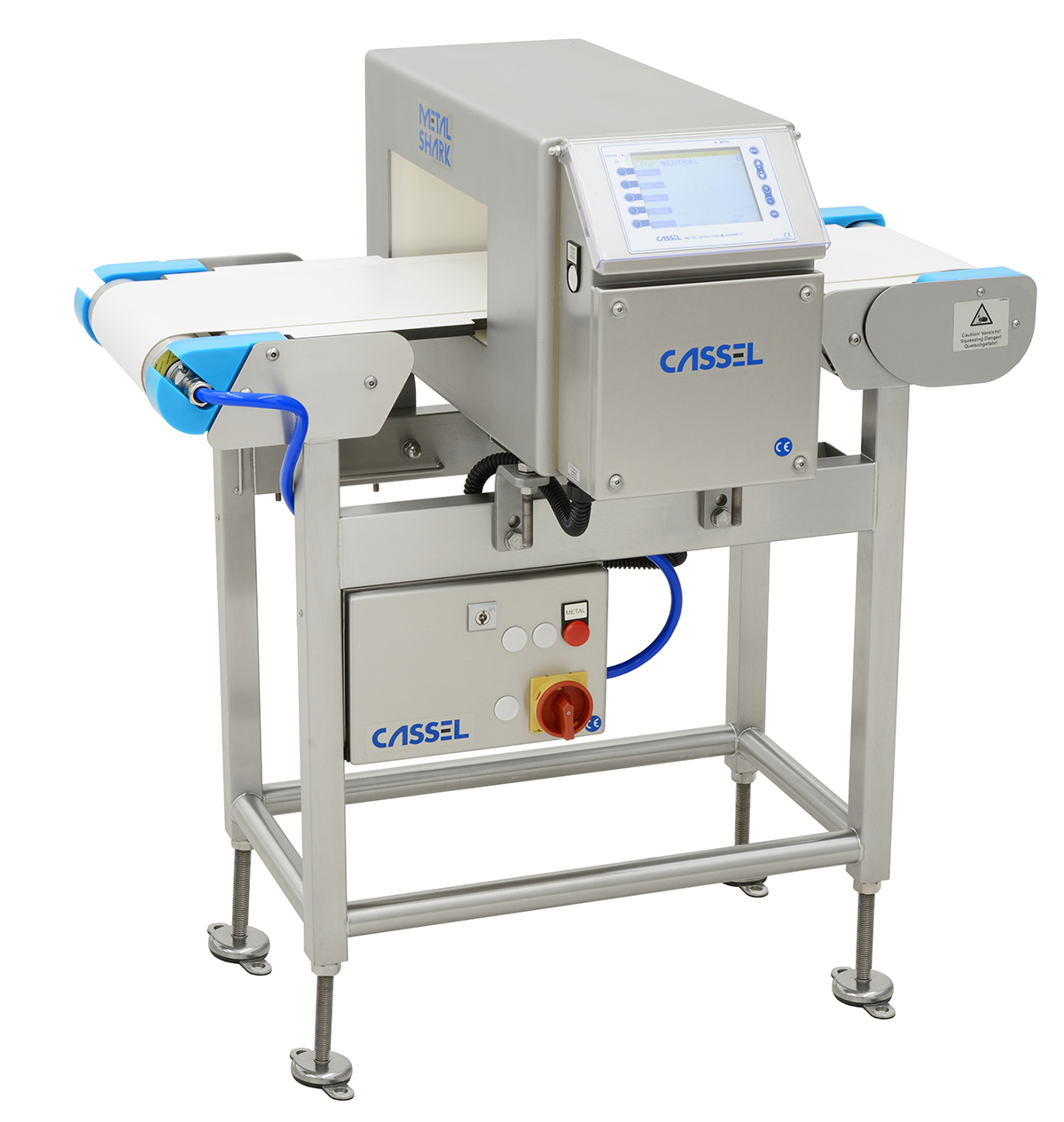

High Sensitive Metal Detectors HW Series

METAL SHARK® BD equips with standard conveyor for low weight product inspection of max. 10 kg or 15 kg, sturdy stainless-steel, maintenance-free and constructed for a durable operation in an industrial environment.

  • Aperture height: 100 – 175 mm / 100 – 250 mm
  • Pass height: 75 - 150 mm / 75 - 225 mm
  • Max. pass width: 350 mm / 450 mm
  • Conveyor-lengths: 1,000 mm / 1,200 mm
  • Conveyor-widths: 250 mm / 350 mm
  • Max. product weight: 10 kg / 15 kg

HQ Conveyor

The high quality HQ conveyors for METAL SHARK® Metal Detectors are available in standard as well as custom-made versions. They are suitable for permanent and reliable application even in harshest environments with highest quality standards (like in the food industry).

  • Tailor-made: according to customers' specification
  • HQ Modular Construction System: different types of conveyors, conveyor belts, reject devices and other options

METAL SHARK® GF

For gravity-feed applications, round aperture, stainless-steel version, highest sensitivity.

  • Product-effect teaching: yes
  • Best sensitivity: Fe Ø 0.5 mm
  • Pipe Ø 100 - 600 mm

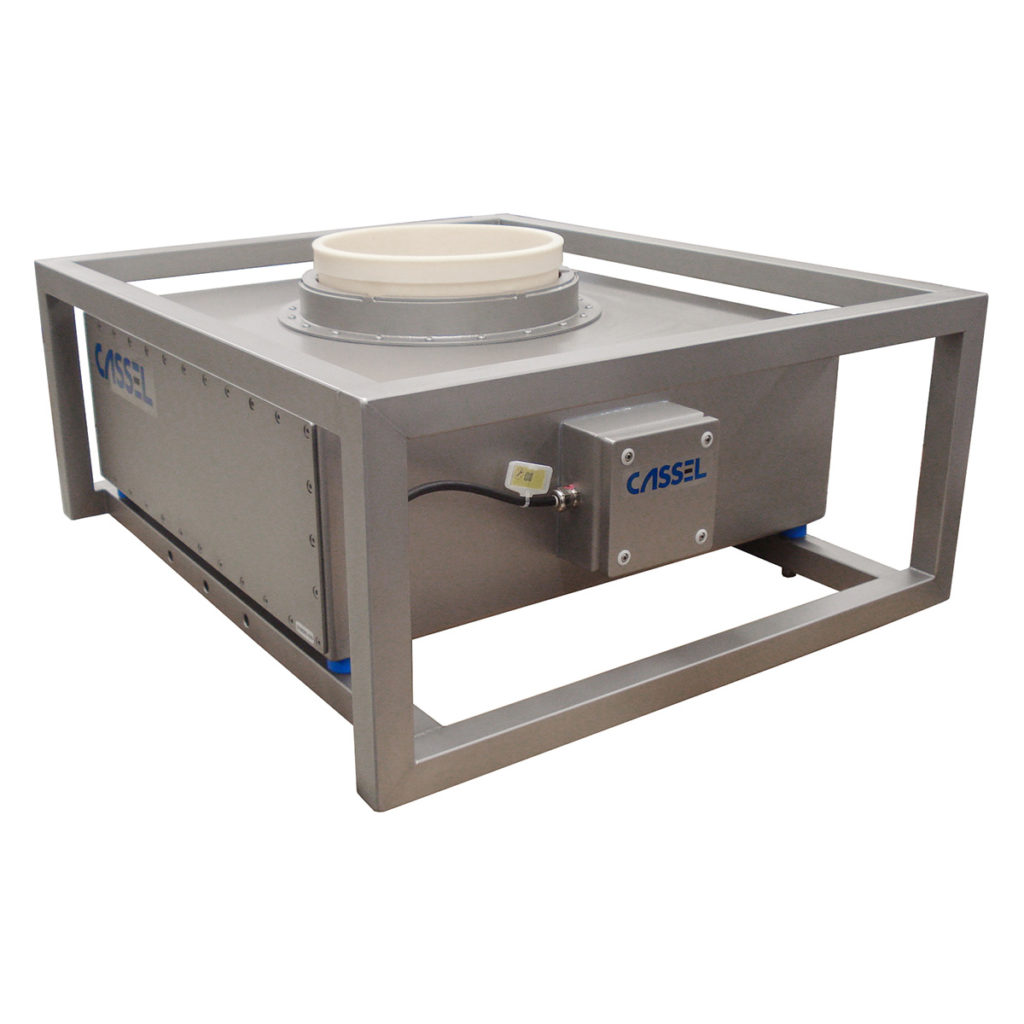

METAL SHARK® GF Compact

For gravity-feed applications, round aperture, stainless-steel version, special compact dimensions.

  • Product-effect teaching: yes
  • Best sensitivity: Fe Ø 0.7 mm
  • Pipe Ø 100 - 300 mm

METAL SHARK® IN LIQUID

Inline-detector for liquid or pasty products in pipes, stainless-steel, easy daily cleaning.

  • Product-effect teaching: yes
  • Best sensitivity: Fe Ø 0.5 mm
  • Pipe Ø 40/50/65/80/100 mm

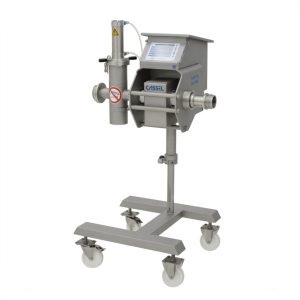

METAL SHARK® IN MEAT

Inline-detector for liquid or pasty products in pipes, stainless-steel, easy daily cleaning

  • Product-effect teaching: yes
  • Best sensitivity: Fe Ø 0.5 mm
  • Pipe Ø 40/50/65/80/100 mm

SHARKNET®-2 Software

Windows software for HACCP and Batch reports and remote maintenance.

SHARKNET provides automatic documentation of operational data for metal detectors, checkweighers and x-ray devices.

The SHARKNET®-2 Software networks all METAL SHARK® metal detectors, checkweighers and x-ray machines with one Windows computer. SHARKNET®-2 simplifies reporting for HACCP, GMP, BRC and IFS compliance. The software collects all the required data and prints out any user defined report requests.
