METAL SHARK® BD

Conveyor-applications, non-divideable, stainless-steel construction.

  • product-effect teaching: yes
  • best sensitivity: Fe Ø 0.5 mm
  • Aperture width: 50 - 1000 mm
  • Aperture height: 50 - 500 mm

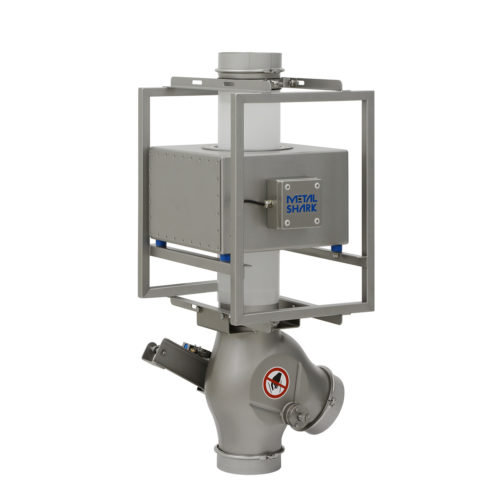

METAL SHARK® GF

For gravity-feed applications, round aperture, stainless-steel version, highest sensitivity.

  • Product-effect teaching: yes
  • Best sensitivity: Fe Ø 0.5 mm
  • Pipe Ø 100 - 600 mm

METAL SHARK® R

Highest performance in detecting magnetic and non-magnetic metals, smallest metal objects are separated out of the goods' stream promptly.

  • Product-effect teaching: yes
  • Best sensitivity: Fe Ø 0.05 mm
  • Aperture Ø 10/25/35 mm

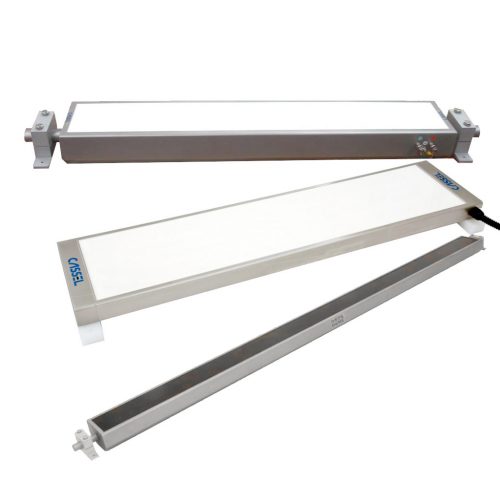

METAL SHARK® FL

Flat-sensor for mounting above and below the product.

  • Product-effect teaching: yes
  • Fe Ø 0.8mm in 10mm above sensor
  • Sensing width: 200 -8,000 mm

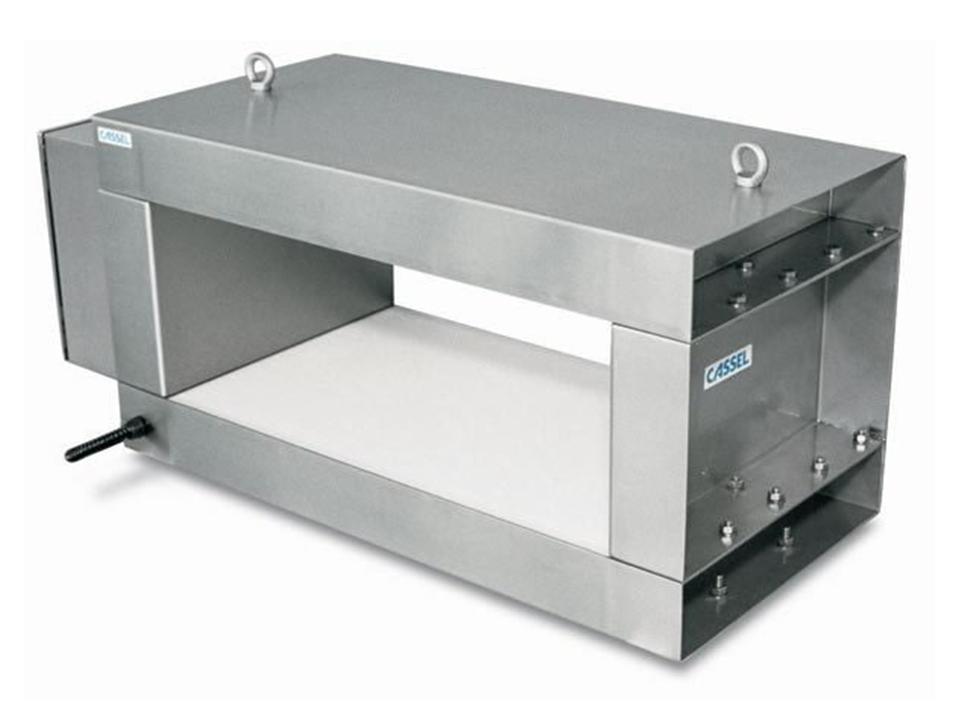

METAL SHARK® TU

Divideable Tunnel-detector, for installation in conveyor-belts. Automatic adjustment of sensor, stainless-steel housing.

  • Product-effect teaching: yes
  • Sensing heights: 200 – 800 mm
  • Best sensitivity: Fe Ø 1.2 mm
  • Sensing widths: 200-2,000 mm

SHARKNET®-2 Software

The SHARKNET®-2 Software networks all METAL SHARK® metal detectors, checkweigher and x-ray with one Windows computer. SHARKNET®-2 simplifies reporting for HACCP, GMP, BRC and IFS compliance. The software collects all the required data and prints out any user defined report requests.

Report functions in Windows and Printing: IFS/HACCP/GMP/BRC Report, parameter sheet, graphic and text report of metal events with metal detectors. Batch and average weight reports with checkweighers.
