Pharmaceutical
Typically, the METAL SHARK® in the medical pharmaceutical sector are used at the outlet of a tablet press and provide the highest performance in detecting magnetic and non-magnetic metals. The tablets fall through the metal detector. With the reject flap the smallest metal objects are promptly separated out of the goods stream. Cassel supplies the required IQ, OQ, PQ qualification templates along with the METAL SHARK® PH metal detector (SQ is optional).

	METAL SHARK® BD Conveyor-applications, non-divideable, stainless-steel construction. product-effect teaching: yes best sensitivity: Fe Ø 0.5 mm Aperture width: 50 - 1000 mm Aperture height: 50 - 500 mm

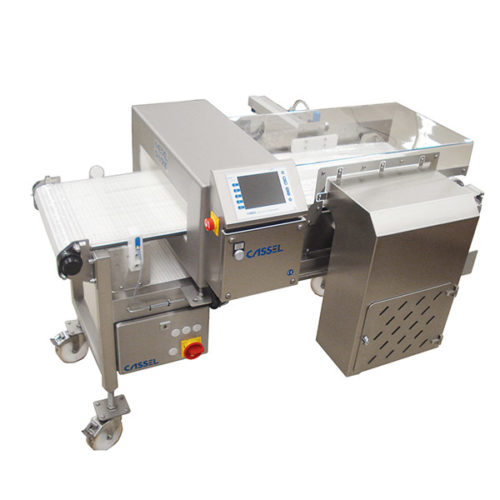

	HQ Conveyor The high quality HQ conveyors for METAL SHARK® Metal Detectors are available in standard as well as custom-made versions. They are suitable for permanent and reliable application even in harshest environments with highest quality standards (like in the food industry). Tailor-made: according to customers' specification HQ Modular Construction System: different types of conveyors, conveyor belts, reject devices and other options

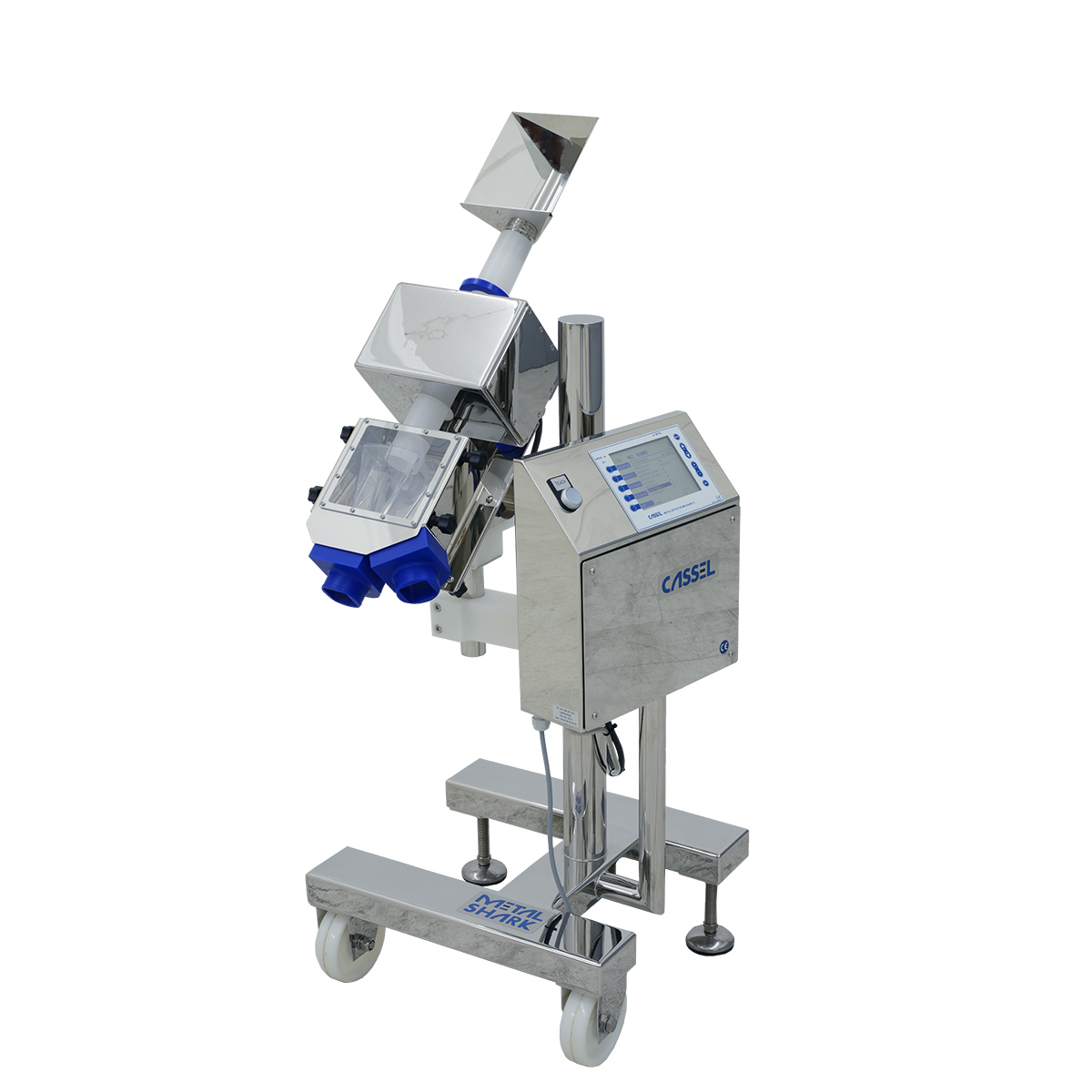

	METAL SHARK® PH Pharmaceutical metal detection system featuring: PH Sensor head, Infeed and reject system, solenoid driven stainless steel reject diverter mechanism, mobile frame with castors, stainless steel mirror polished, variable infeed / outfeed height, quick demount design for easy cleaning, IQ/OQ/PQ qualification templates. Product-effect teaching: yes Best sensitivity: Fe Ø 0.3 / NFe Ø 0.4 / SS(316) Ø 0.5 mm Throughput max. 5,000 tablets/capsules per minute.
	METAL SHARK® R Highest performance in detecting magnetic and non-magnetic metals, smallest metal objects are separated out of the goods' stream promptly. Product-effect teaching: yes Best sensitivity: Fe Ø 0.05 mm Aperture Ø 10/25/35 mm
	METAL SHARK® GF For gravity-feed applications, round aperture, stainless-steel version, highest sensitivity. Product-effect teaching: yes Best sensitivity: Fe Ø 0.5 mm Pipe Ø 100 - 600 mm
	SHARKNET®-2 Software Windows software for HACCP and Batch reports and remote maintenance. SHARKNET provides automatic documentation of operational data for metal detectors, checkweighers and x-ray devices. The SHARKNET®-2 Software networks all METAL SHARK® metal detectors, checkweighers and x-ray machines with one Windows computer. SHARKNET®-2 simplifies reporting for HACCP, GMP, BRC and IFS compliance. The software collects all the required data and prints out any user defined report requests.
