METAL SHARK® COMBI

Ultra-high sensitivities for products being extra wide and flat. The product is positioned close to the sensor-surface.

• Product-effect teaching: yes
• Best sensitivity: Fe Ø 0.3 mm
• Sensing width: up to 5,000 mm

METAL SHARK® BIG pba

Highest sensitivities for extra-wide products (e.g. MDF- and particle-boards).

• Product-effect teaching: yes
• Best sensitivity: Fe Ø 1.0 mm
• Aperture width up to 5,000 mm
• Aperture height up to 500 mm

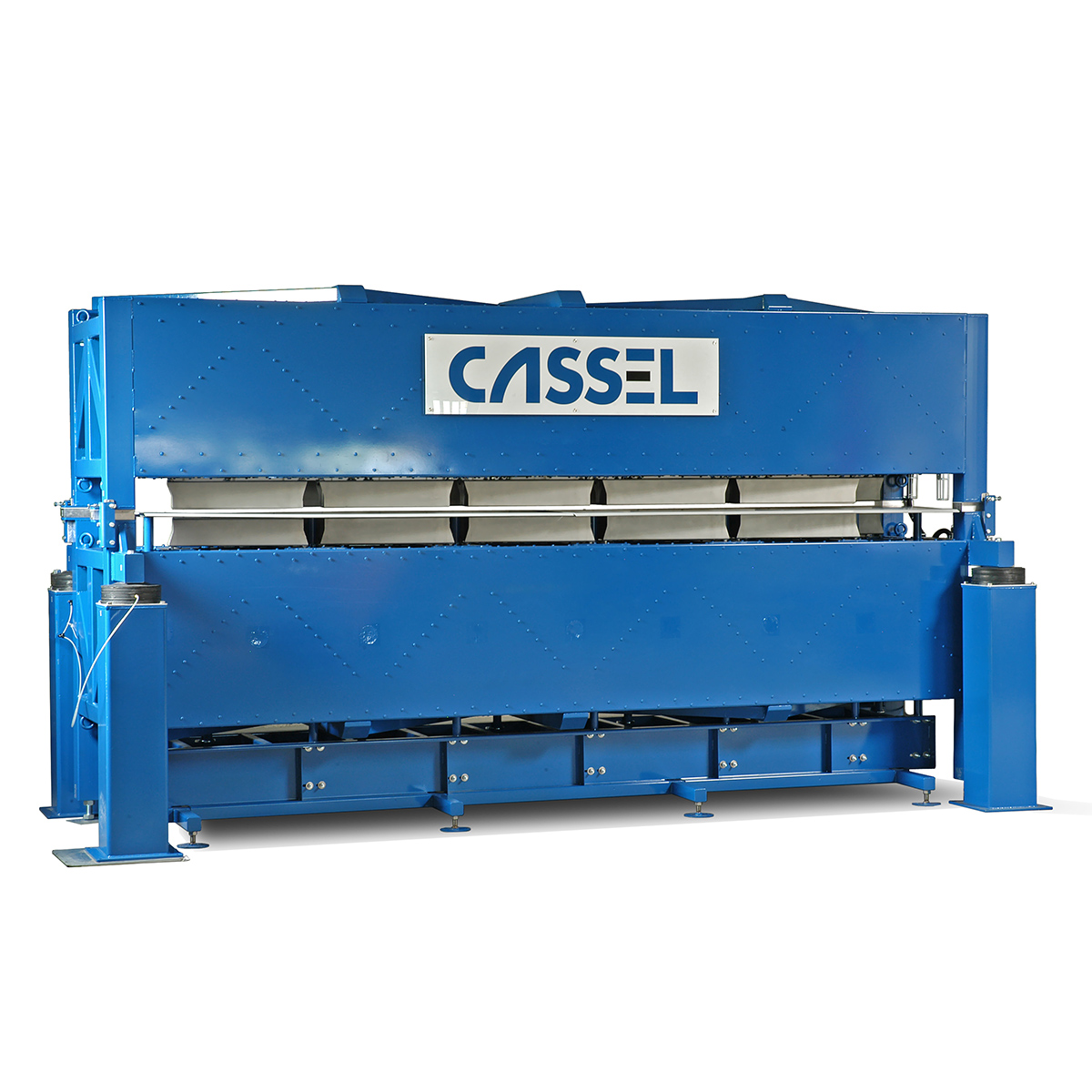

METAL SHARK® COMBI-TU

The METAL SHARK® COMBI TU is constructed as a multi-segment-sensor, with sensor plates underneath and above the inspected boards. The total detection zone of the detector is thus divided into several single zones, each of them being about 365 mm width. The sensor is available for various paperboard widths, such as 1,000 – 5,000 mm. The net aperture height is 28 mm.

• Product-effect teaching: yes
• Metal Detection Levels: Fe Ø 0.6 mm /Magnetic SS Ø 0.7 mm / Non-Fe Ø 0.8 mm / SS Ø 1.0 mm

SHARKNET®-2 Software

Windows software for HACCP and Batch reports and remote maintenance.

SHARKNET provides automatic documentation of operational data for metal detectors, checkweighers and x-ray devices.

The SHARKNET®-2 Software networks all METAL SHARK® metal detectors, checkweighers and x-ray machines with one Windows computer. SHARKNET®-2 simplifies reporting for HACCP, GMP, BRC and IFS compliance. The software collects all the required data and prints out any user defined report requests.
